Hey there, young adventurers! Today, we’re diving into the exciting world of electronics to learn about something super cool: measuring resistance with a multimeter. Don’t worry if those words sound big – we’ll break it down into a super fun adventure!

Imagine you’re on a treasure hunt, and the treasure you’re seeking is hiding in something mysterious called a “circuit.” But to unlock the treasure, you need a special tool called a multimeter – your trusty explorer’s kit!

First things first, what’s resistance? Think of resistance like different obstacles on your treasure hunt path. Some paths are smooth and easy to walk on, while others might have big rocks or sticky mud that slow you down. In electronics, resistance is like those obstacles – it’s how much something tries to slow down the flow of electricity.

Here’s how we use it:

Connect Your Leads: The leads are like the ropes you use in climbing. We’ll connect one lead to each end of the thing we want to measure – like a wire or a resistor.

Read the Display: Once everything’s connected, your multimeter will show you a number. This number tells us how much resistance there is. If it’s a big number, there’s lots of resistance (like trying to walk through sticky mud!). If it’s a small number, there’s less resistance (smooth sailing!)

Parts Of A Digital Multimeter

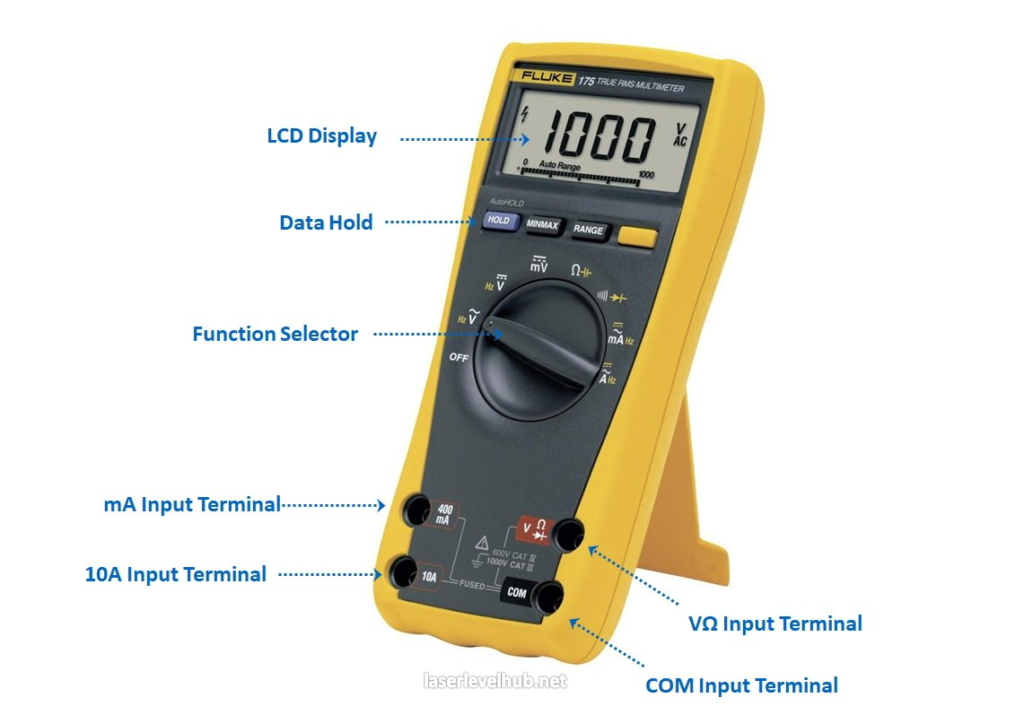

A digital multimeter has three main parts which include:

• Display
• Selection Knob
• Ports

The black test probe is inserted into the COM port. It’s important to note that both the black and red probes have the same level of electrical conductance. The color difference between them is simply to aid in distinguishing between the positive and negative charges of a circuit.

The port labeled 10A is utilized (with the red probe connected) for measuring currents exceeding 200mA.

The third port, labeled mAVΩ, is conventionally where the red probe is inserted. This port allows for the measurement of voltage (V), currents (up to 200mA), and resistance (Ω).

At the tip of the probes, there’s a banana-type connector that fits into the multimeter ports.

Any test probe equipped with a banana-type connector plug can be employed with a multimeter, enhancing the meter’s compatibility with various types of probes, such as:

• Banana to Test Probes: These are standard probes typically included with a multimeter. They’re affordable and easily replaceable if damaged.
• Banana to Tweezers: Useful for testing Surface Mount Device (SMD) components.
• Banana to IC Hook: Ideal for connecting to Integrated Circuit (IC) legs, especially smaller ones.
• Banana to Alligator Clip: These probes are great for attaching to pins or larger wires on a breadboard. They’re particularly handy for prolonged tests or when you need to keep the probes in position while manipulating an electric circuit.

Display

The display of a digital multimeter features an LCD screen capable of showing readings. Typically, it consists of four digits and can display a negative sign when necessary.

Additionally, certain meters are equipped with a backlit feature, enhancing readability and allowing for easier viewing under low-light conditions.

Selection Knob

Selection knob With the selection knob, users can easily set or select the parameter that they intend to measure with their multimeters, such as voltage (V), milliamps of current (mA), and resistance (Ω).

How to Read a Digital Multimeter

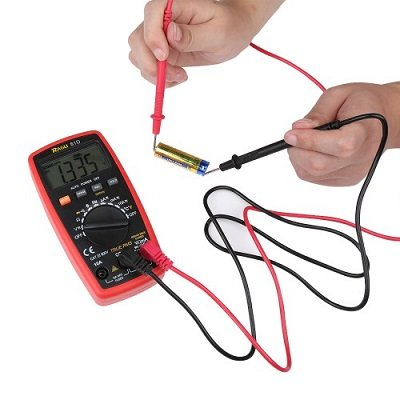

To read the voltage on an AA battery using a multimeter, follow these steps:

1. Insert the red probe into the port labeled mAVΩ and the black probe into the COM port on the multimeter.
2. Turn the selection knob to set the meter to “2V” in the direct current (DC) range. Remember, most portable electronics operate on DC, not AC.
3. Connect the red probe to the positive (‘+’) terminal of the battery and the black probe to the negative (‘-‘) terminal of the AA battery.

Once the probes are properly connected, the multimeter will display the voltage reading on its screen. This reading indicates the voltage level of the AA battery.

When applying a little pressure on the probes to securely connect them to the positive and negative terminals of the battery, observe the reading on your multimeter’s screen.

For a brand new battery, you should typically see a reading that is approximately or slightly higher than 1.5 volts displayed on the screen.

Remember, if you’re measuring DC voltage, ensure that the selection knob is set to the position where “V” has a straight line, indicating DC voltage. It’s important to note that AC voltage, like the one found in a wall socket, can be hazardous. Therefore, you’ll rarely need to use the alternating current setting on your multimeter.

If you encounter AC situations, it’s advisable to use a non-contact tester such as a clamp meter instead of relying on a digital multimeter. These testers provide a safer method for measuring AC voltage without direct contact with live wires.

If you switch the black and red probes on a multimeter while measuring voltage, nothing harmful will occur. However, the multimeter will display a negative reading.

Here’s why: Normally, the multimeter measures voltage in comparison with the COM probe. When you connect the red probe to the positive terminal of the battery and the black probe to the negative terminal, you get a positive voltage reading, such as 1.5 volts for a new AA battery.

If you switch the probes, essentially connecting the red probe to the negative terminal and the black probe to the positive terminal, the multimeter measures the voltage in relation to the new reference point (the negative terminal). In this case, it will show a negative voltage reading, such as -1.5 volts.

It’s worth noting that multimeters usually require manual range setting. For example, if you set the range to 20V, it will measure voltage up to 20 volts, and if set to 2V, it will measure voltage up to 2 volts. If you mistakenly set the range too low for the voltage you’re measuring, the multimeter display might show ‘1’ or another indicator, suggesting that the voltage exceeds the selected range.
